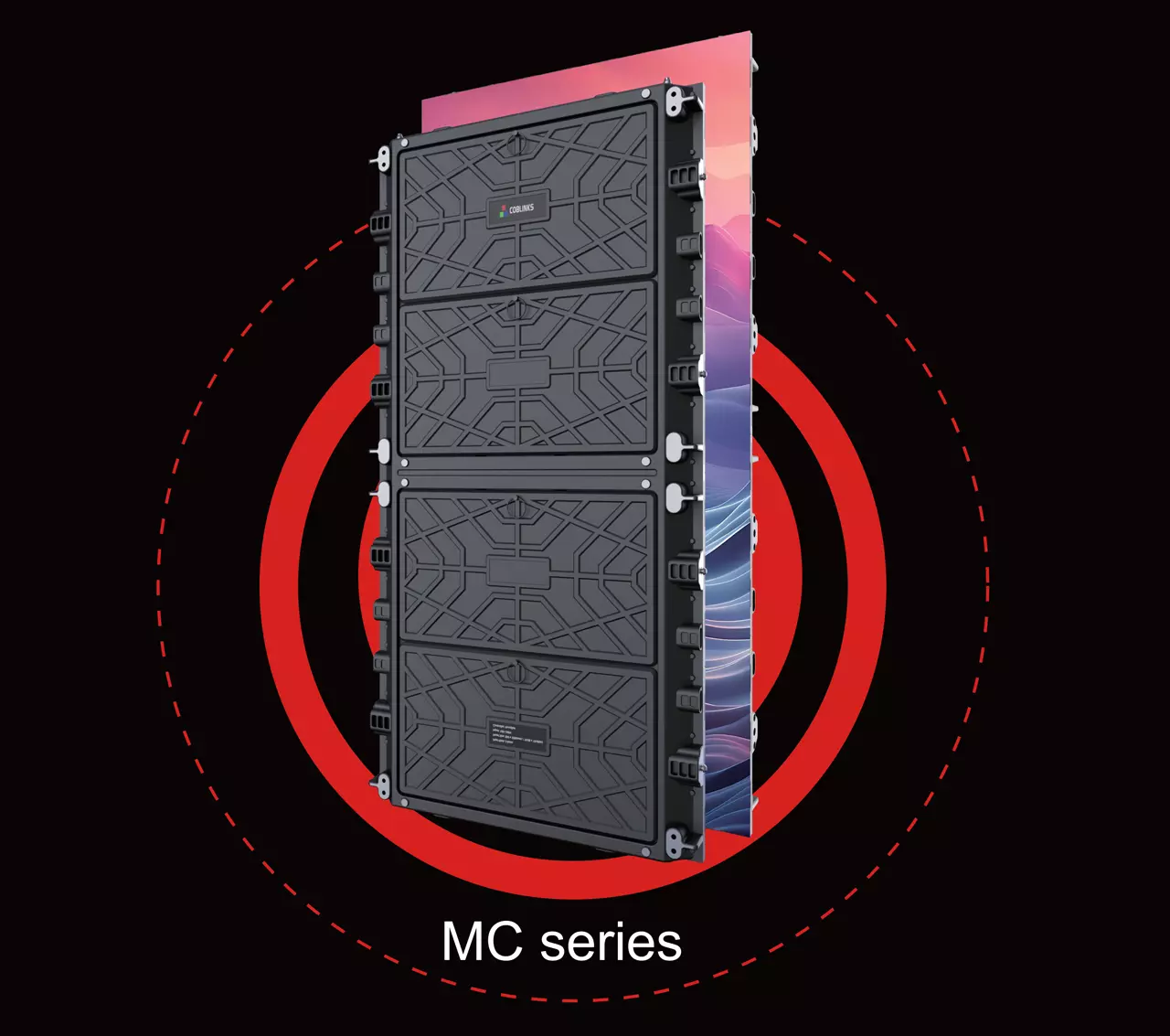

MC Series

The MC Series,designed for different applications of fine indoor display,is available from p1.25 to p3.9mm pixel pitches,effectively addressing user demands with remarkable adaptability.Ultra thin HD, no one will refuse you, leave the excitement to the world .

  • Pixel Pitch: 1.25mm, 1.54mm,1.89mm,2.6mm,3.9mm
  • Panel Dimension: 500(W)*1000(H)*45(D)mm,500(W)*500(H)*45(D)mm, 500(W)*250(H)*45(D)mm,250(W)*500(H)*45(D)mm
GET A QUOTE
Download

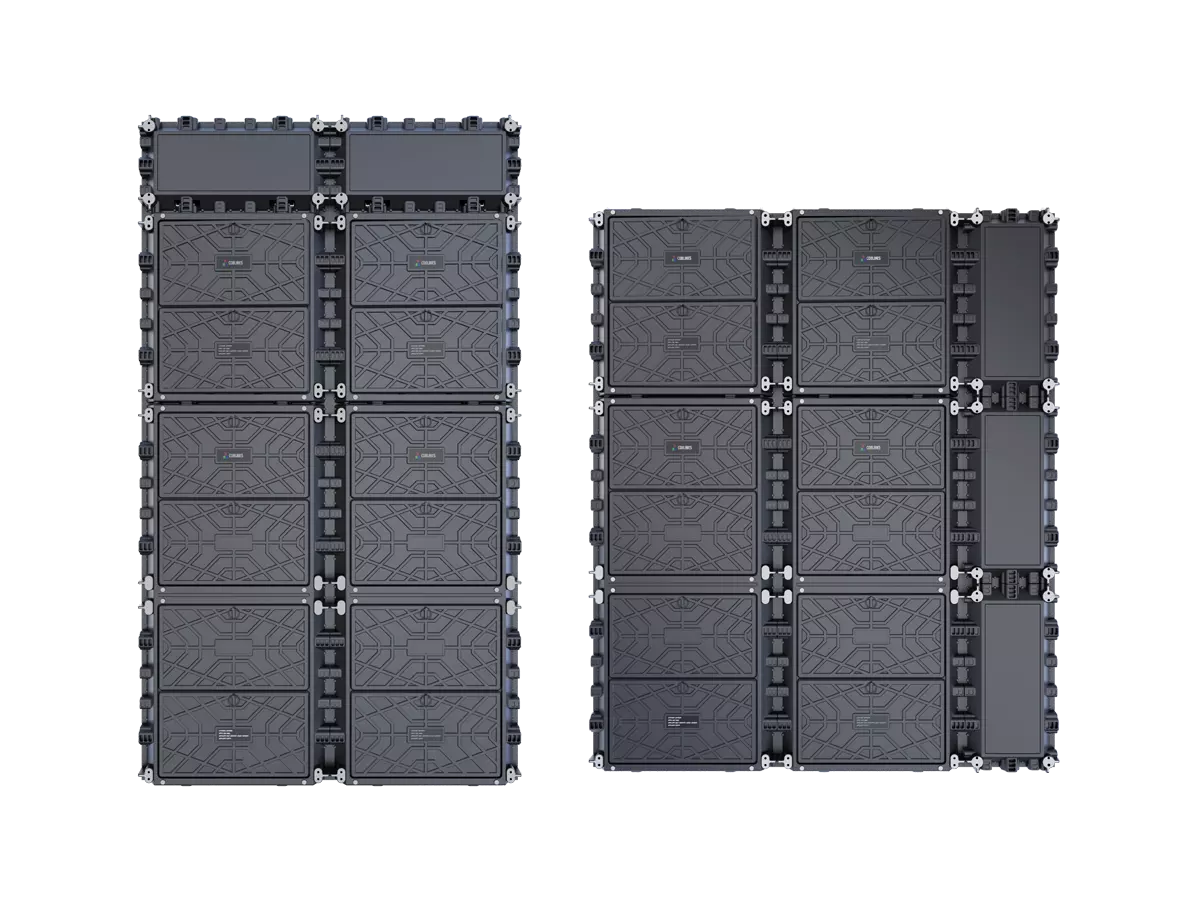

Size diversity

Diverse sizes meet more installation needs

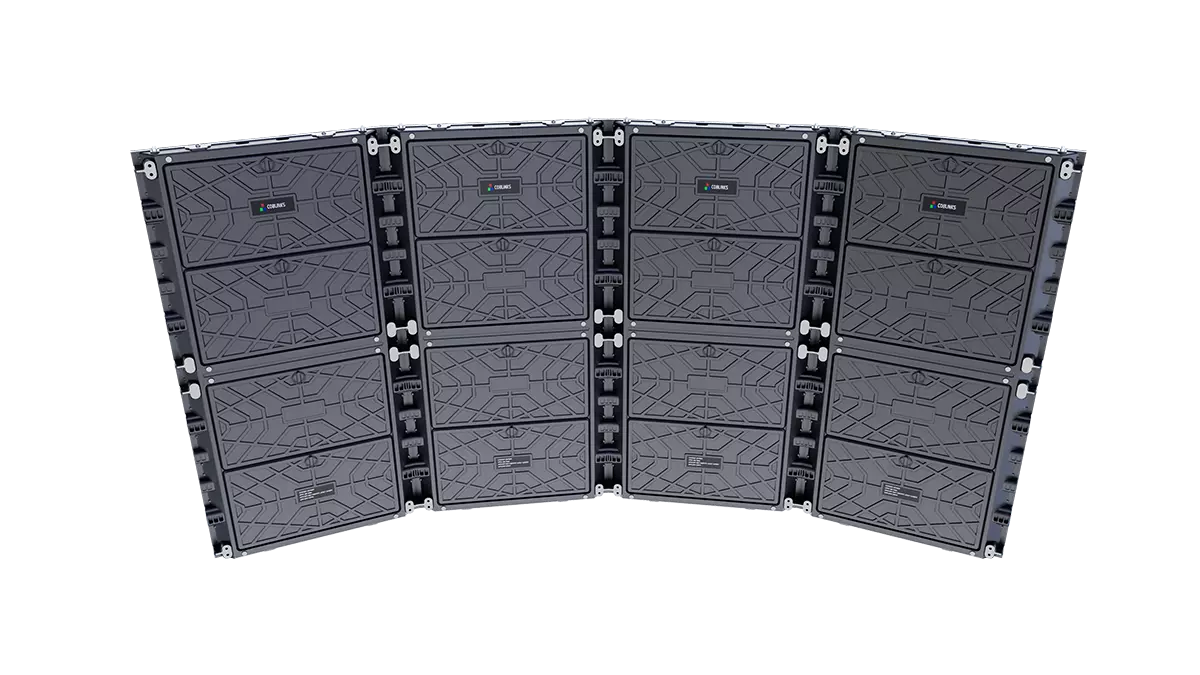

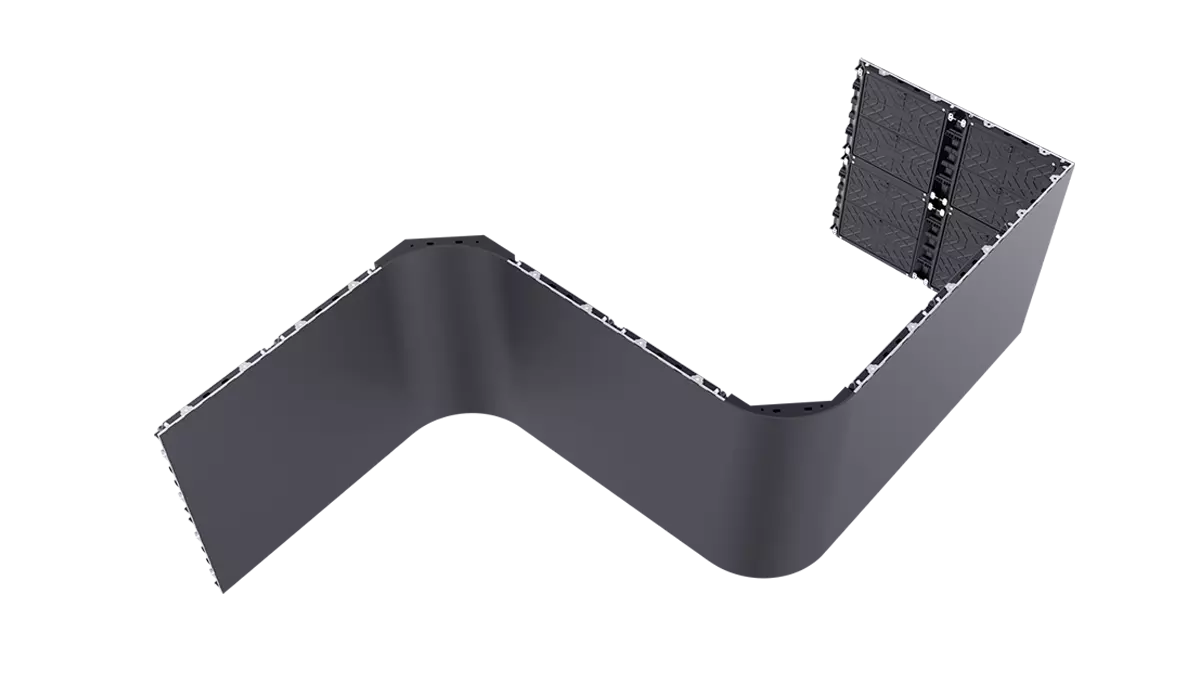

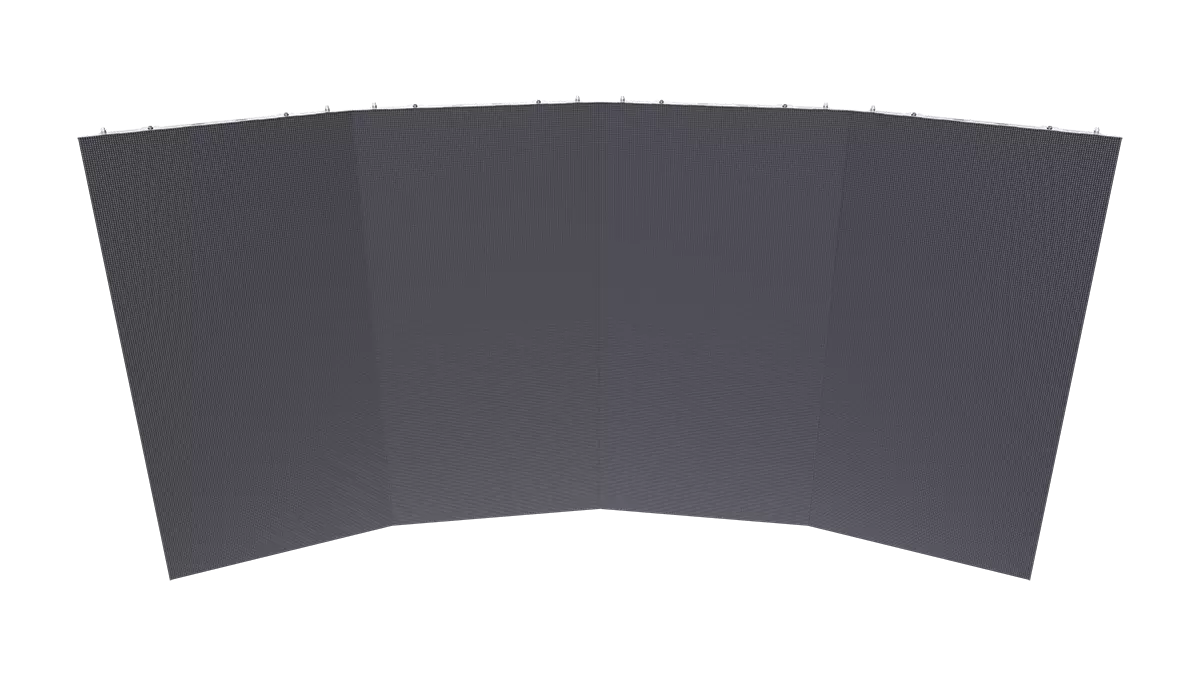

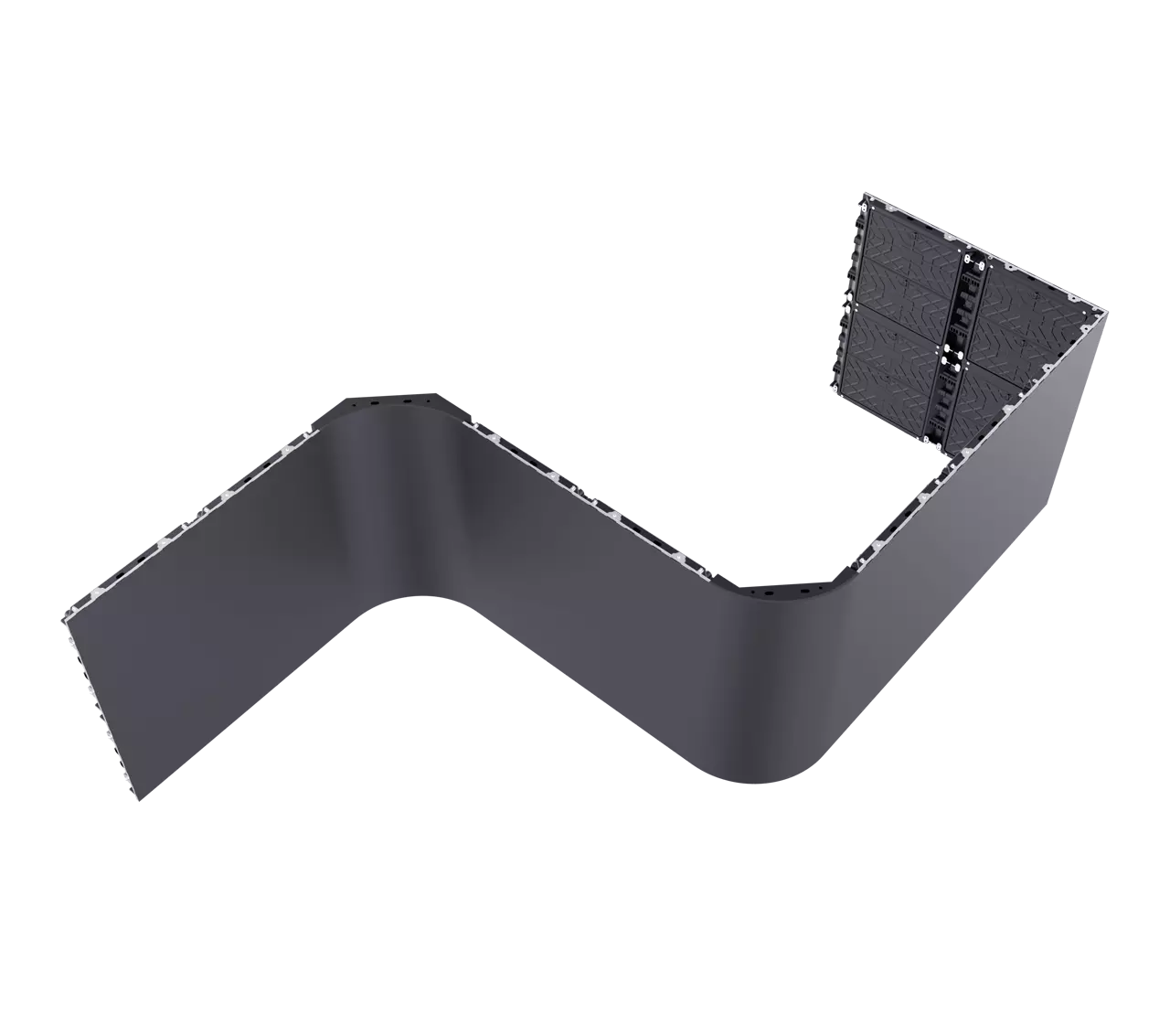

Curved creative splicing

Supports 0-90° rotation!Splicing internal and external bearings to form a perfect arc shape

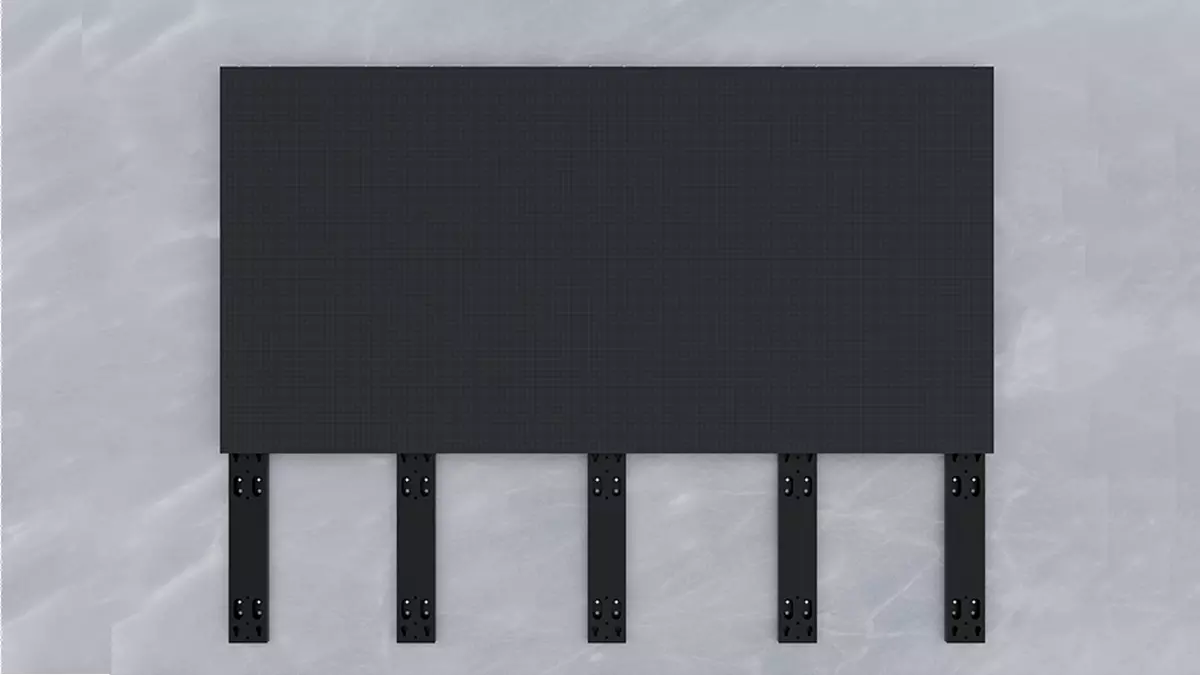

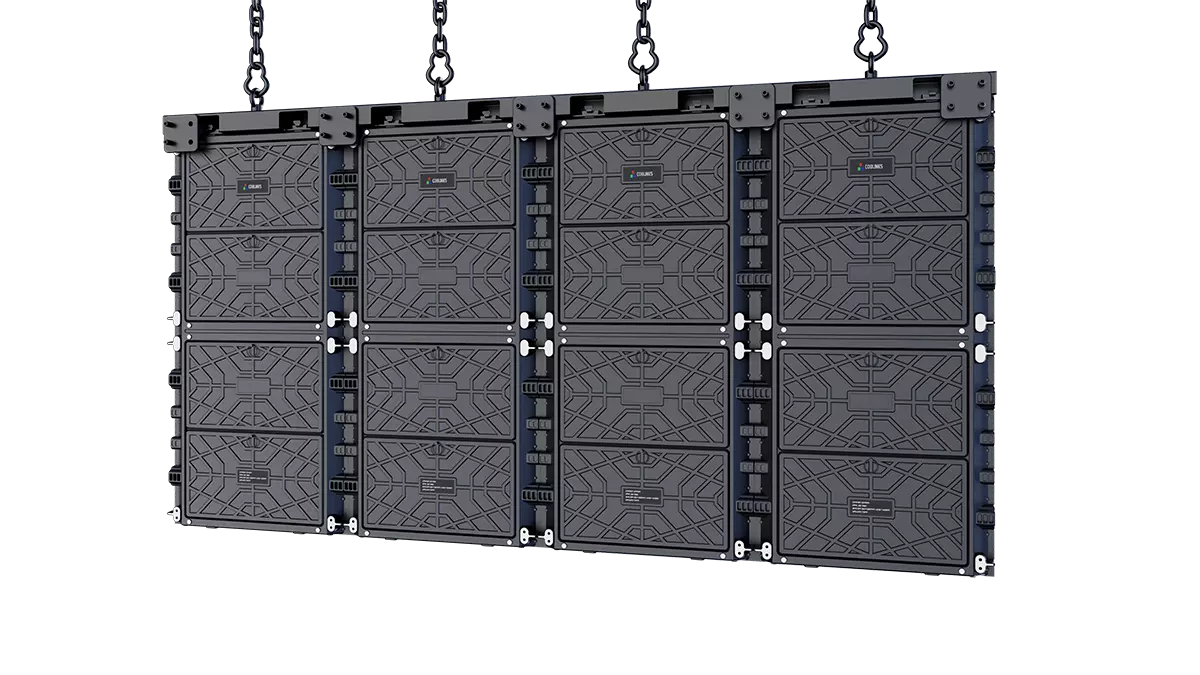

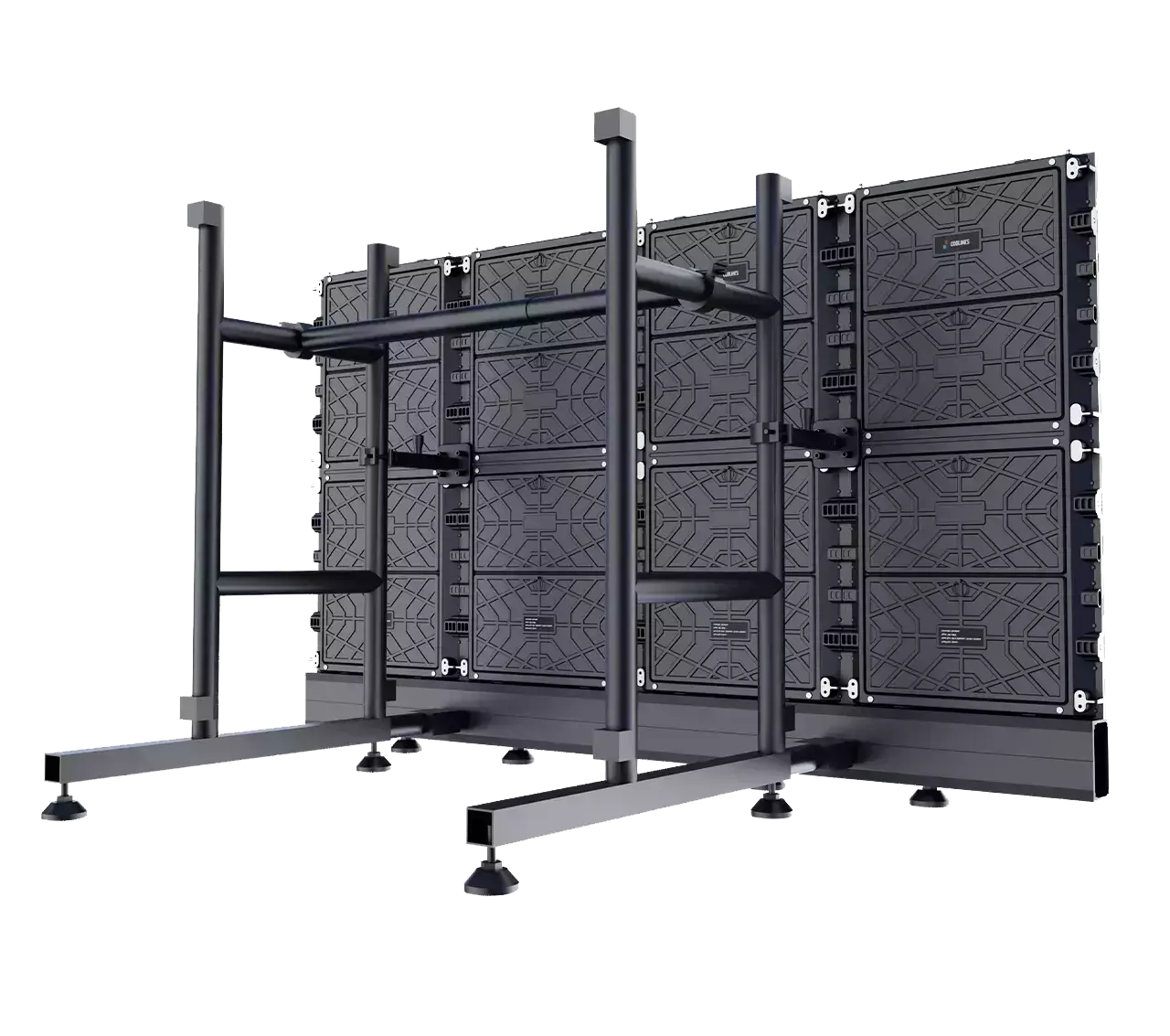

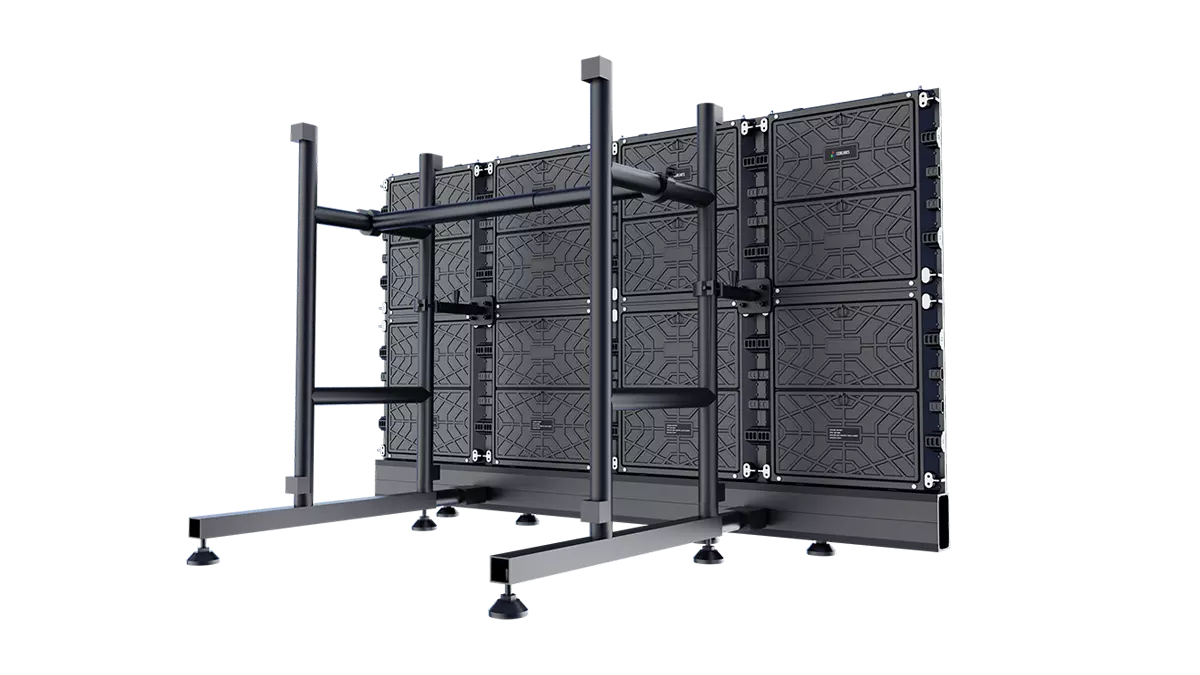

Diversity installation

Installation methods such as lifting, seat mounting, and wall mounting can solve your installation environment problems

High integration

  1. Lightweight magnetic back cover,easy to disassemble and assemble
  2. Lightweight case, supports front and rear maintenance
  3. Hub three-in-one integration,convenient and fast maintenance
  4. Module magnetic hard connection.Support GOB and storage calibration.

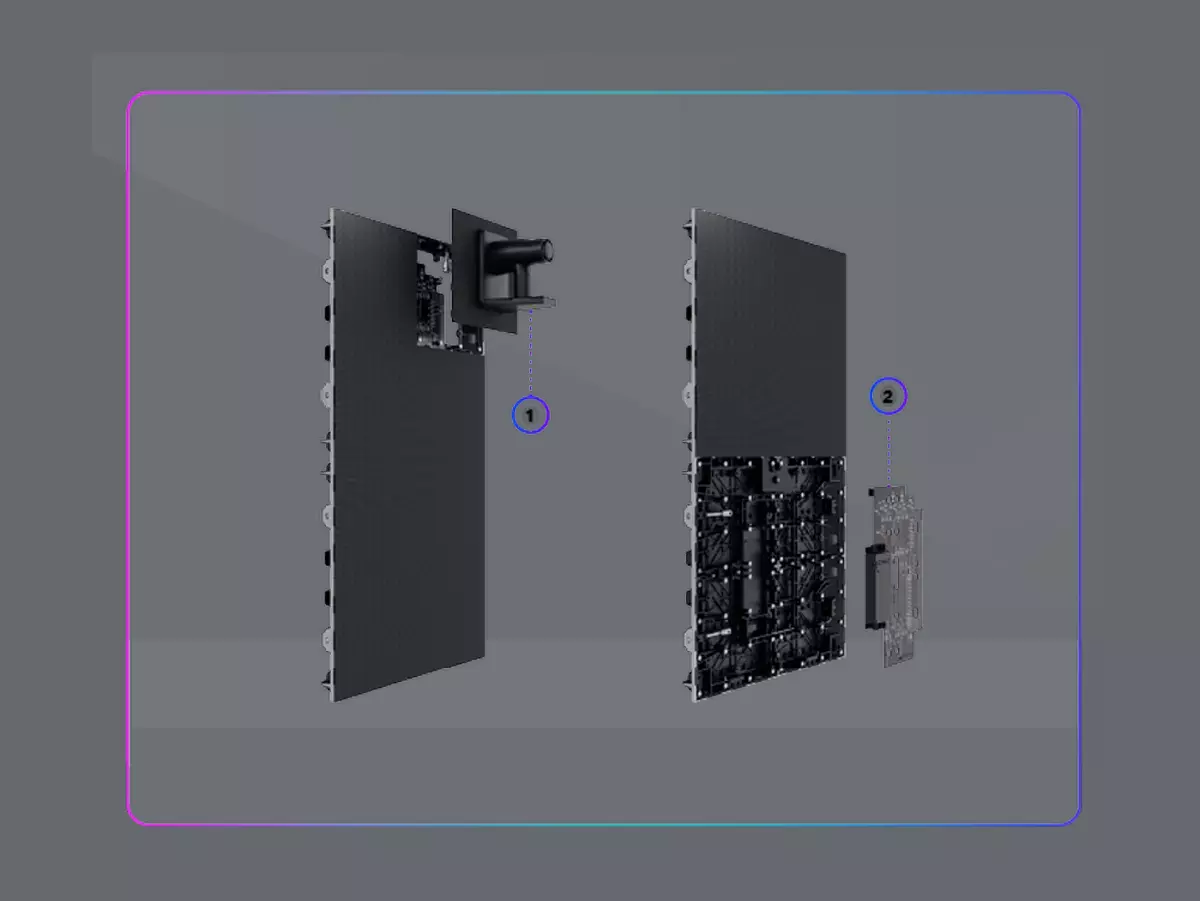

Front Maintenance

  1. Use a suction tool to remove the module from the front
  2. Take out the three in one integrated HUB from the front

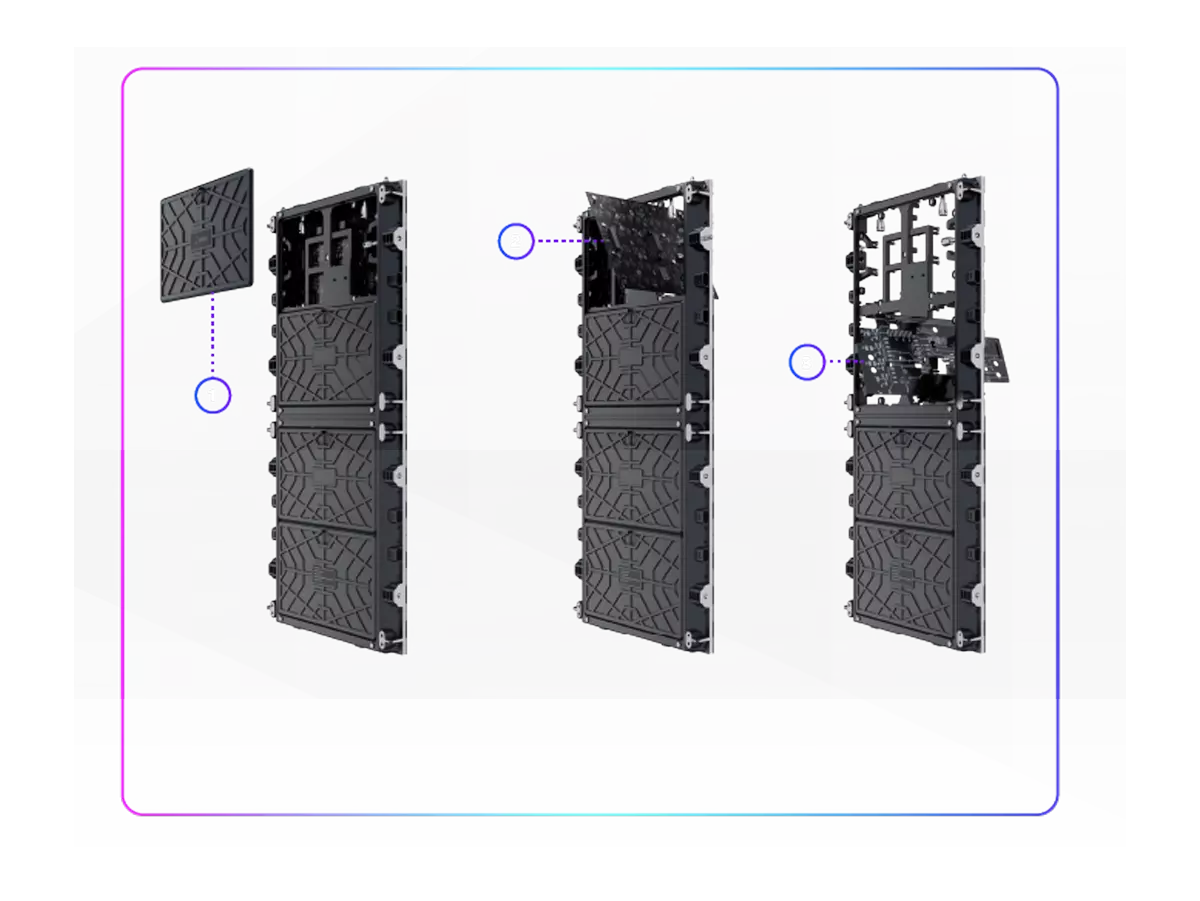

Back maintenance

  1. Remove from behind the back cover of the box
  2. Remove the module from the back of the box
  3. Take out the three in one integrated HUB from the back of the box

Excellent Visual Performance

Sharpening visual clarity and enhancing color vibrancy to render lifelike  details and stunningly rich images

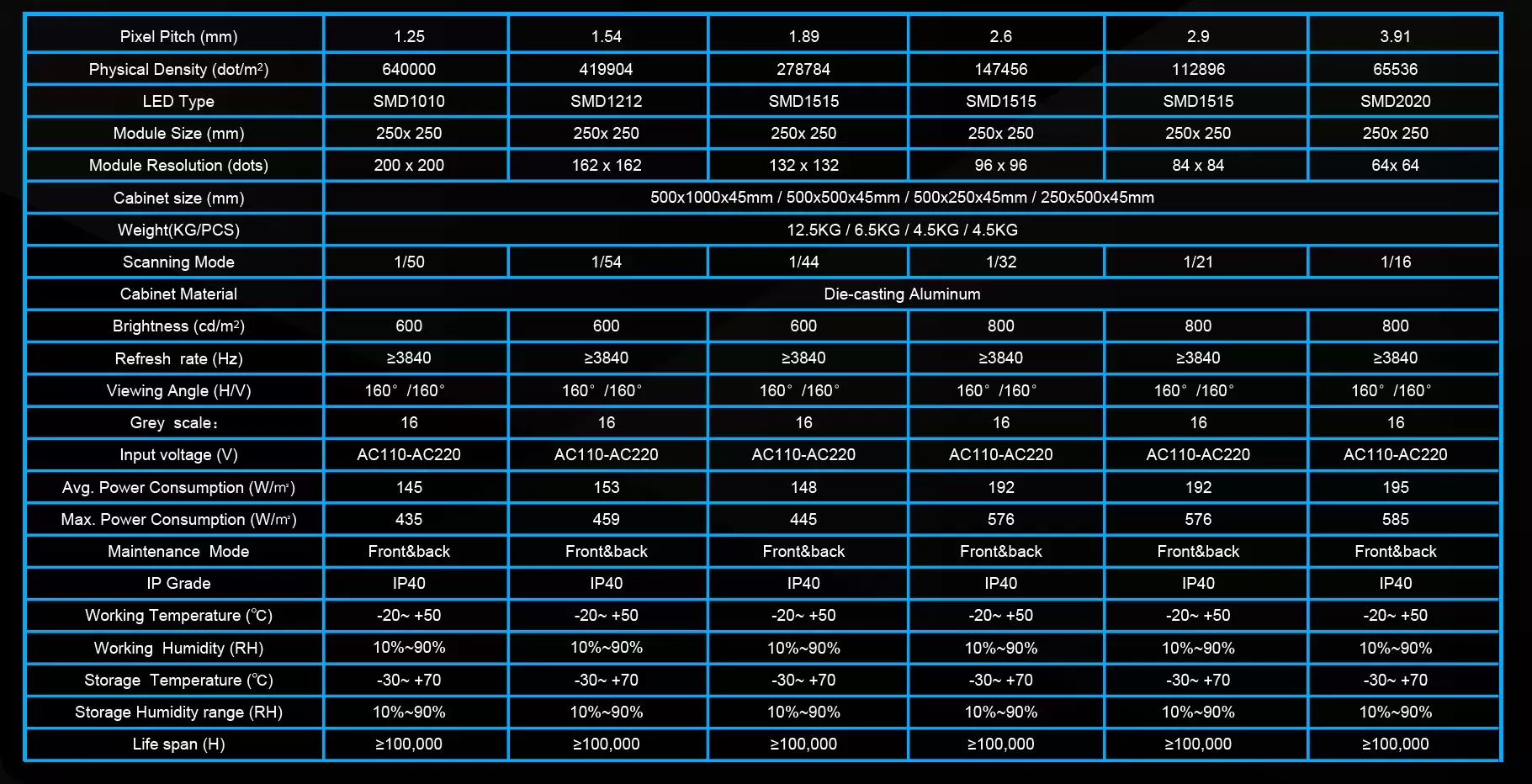

Specifications

Application Reference

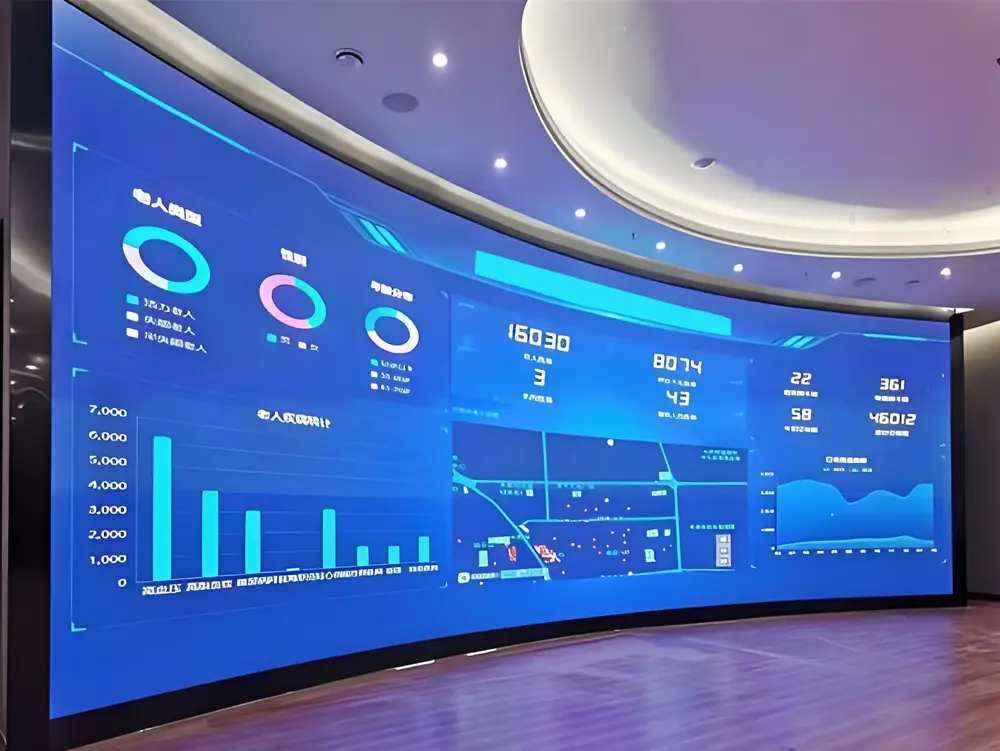

Exhibition Hall

Exhibition Hall

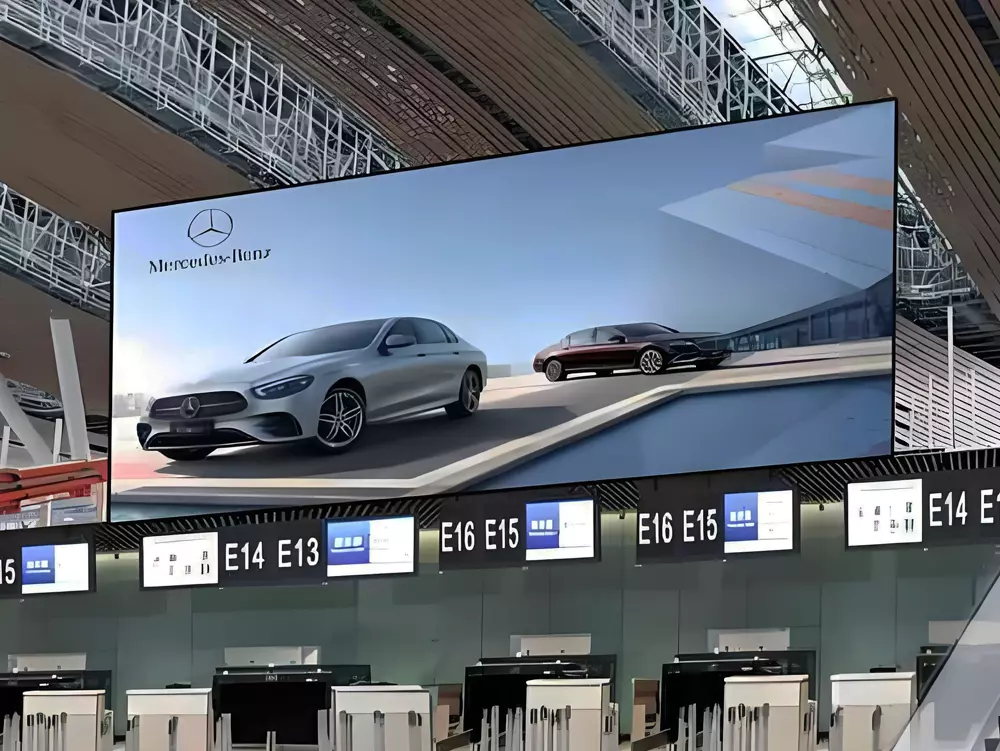

Airport

Airport

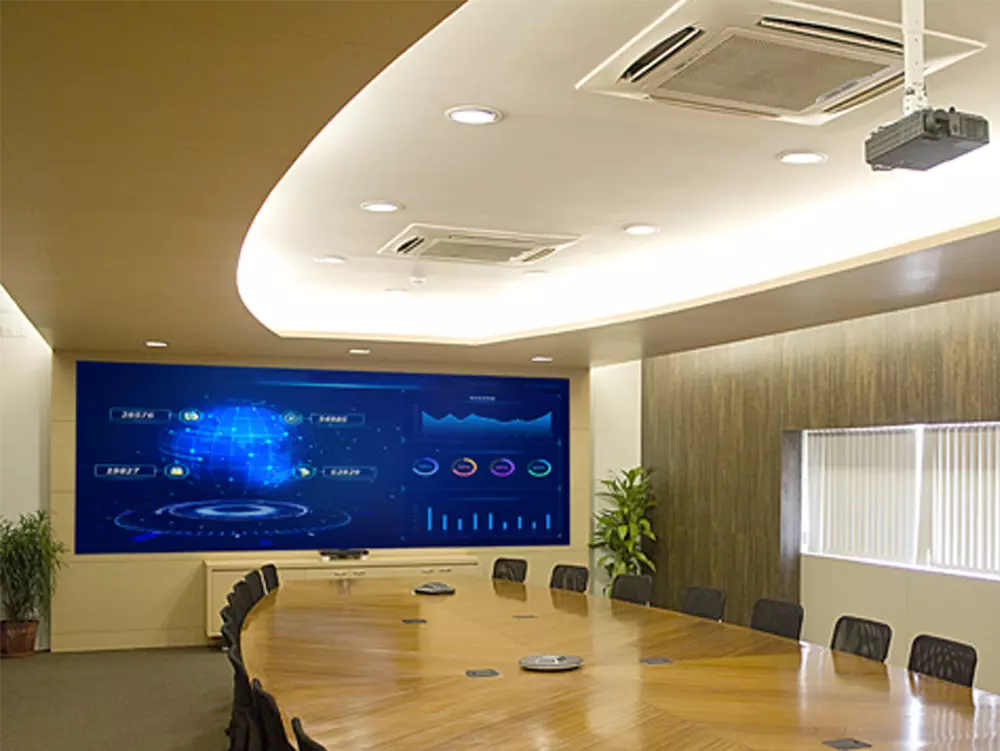

Meeting Room

Meeting Room

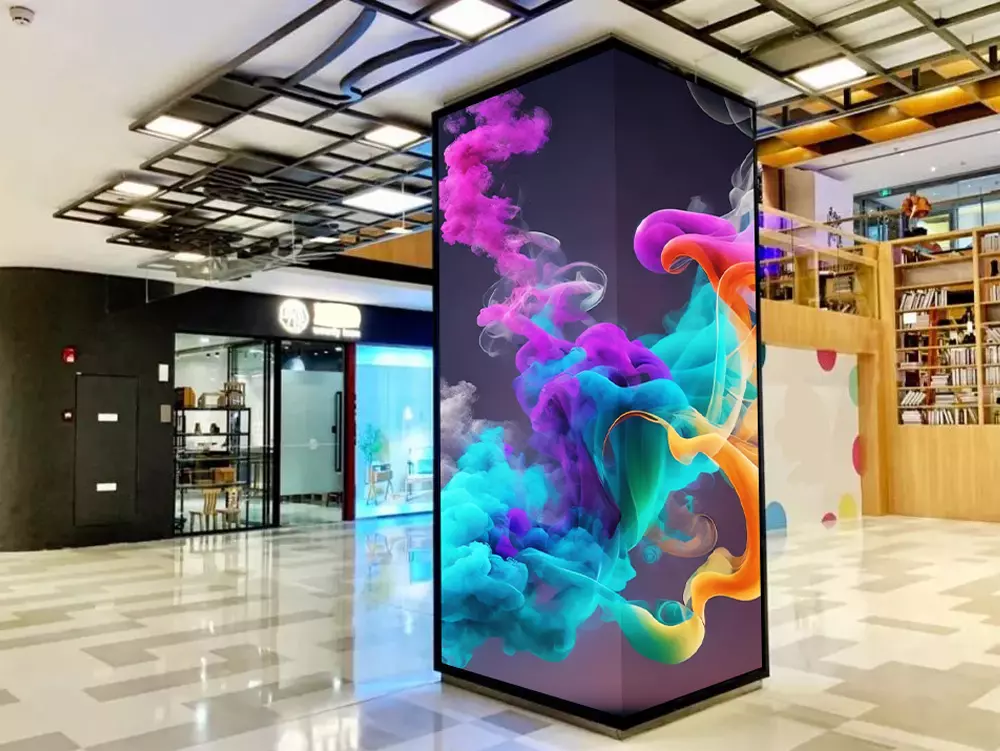

Shopping Mall

Shopping Mall
